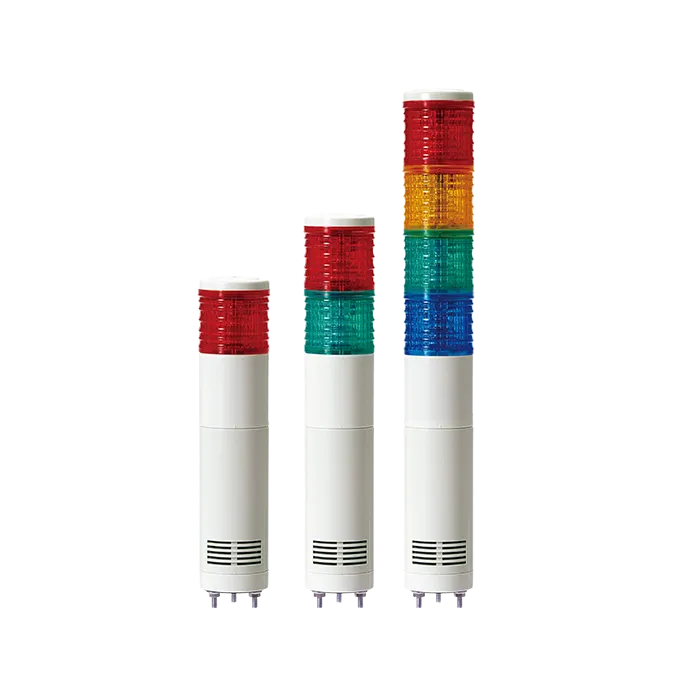

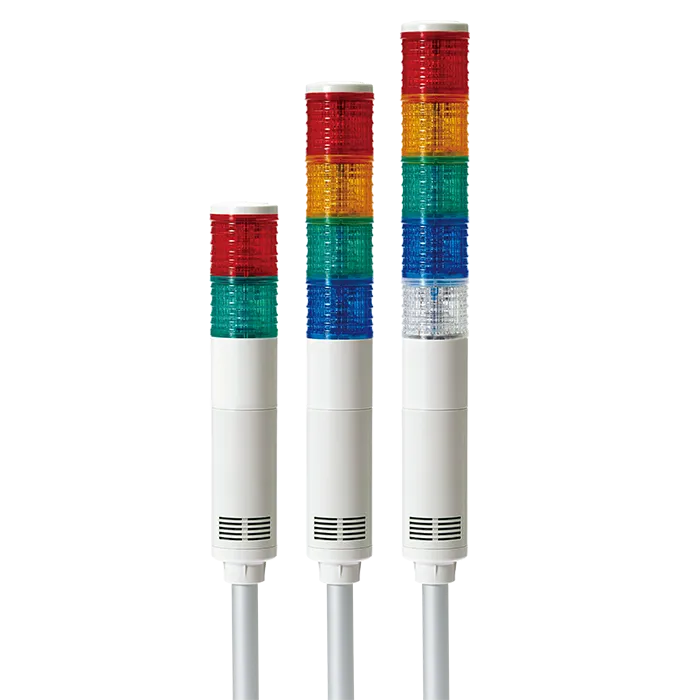

ST56EL-USB

Ø56mm USB LED Tower LightsMax.90dB

CE_COCCE_DOC
Product Feature:Buzzer sounds (Max.90dB at 1m) Warning sounds (Max.90dB at 1m)
Voltage:USB DC 5V
Dimension:Diameter : Ø56mmHeight : 406-566
Materials:Lens-ASHousing-ABS
Protection rating:IP23
SPKbuzzerIP2390dB-30℃ ~ +50℃LED Steady-Flashing TypeRoHS
ST56EL-W
ST56EL-W

Product Feature

Features
  • Ideal solution for building smart factories with state of the art technology
  • LED tower light that is fully controlled by a PC application via USB port connection
  • Possible to use USB cable connection without an additional power supply

Main characteristics
  • Provides MS Runtime libraries for developers to utilize in various PC applications
  • Controlled by PC application
  • LED Module Standard Operation: 2 layers will operate at the same time.
  • Built-in clear melody, alarm sound, the type of sound can be chosen when ordered.
  • 5 built-in Buzzer tones available
  • USB communication cable is comprised of VCC, D-, D +, GND, and shield
  • Compliant with RoHS directive

Operational environment
  • OS Support(32bit / 64bit): Windows XP, Win 7, Win 10
  • Library Support: VC++, VB, Delphi(32bit only), C#(64bit only)
  • Support host that is USB 1.1 or higher
  • Power supply : DC 5V/500mA rated PC USB * 2 ports are required
  • Multiple connections on 1 PC is optionally available (up-to 4 units).
  • ※ The Y cable included with the product has a communication and power connection.
    ※ Multiple LED modules operate within the current range of USB port current coverage.

Product Specifications

Model numberLayerCertificateColor
ST56EL-USB-BZ
ST56EL-USB-WS
ST56EL-USB-WA
ST56EL-USB-WM
5 Buzzer sounds
5 Warning sounds
5 Melodies
5 Alarms
1layer
2layers
3layers
4layers
5layers
European Commission1layer :R-Red
2layers:R-Red G-Green
3layers:R-Red A-Amber G-Green
4layers:R-Red A-Amber G-Green B-Blue
5layers:R-Red A-Amber G-Green B-Blue W-White

Sound Tone Combination of Standard Product

5 Warning Sounds

Fire.A-ANG

Channel.1

Emergency WA-U(Yelp)

Channel.2

Ambulance PI-PO(Hi-low)

Channel.3

Machinery Fault

Channel.4

High Expansion

Channel.5

5 Melodies

Sweet Home

Channel.1

For Elise

Channel.2

Cuckoo's Waltz

Channel.3

Piano Sonata

Channel.4

Turkish March

Channel.5

5 Alarms

Beep Intermittent

Channel.1

Door Chime

Channel.2

Phone Ring

Channel.3

PI.PI.PI. Short Interval

Channel.4

Tripping Beat

Channel.5
