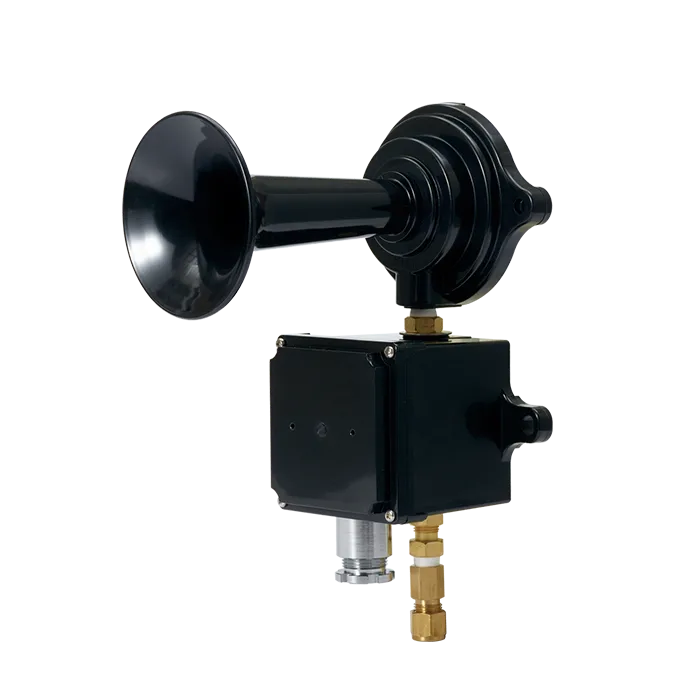

SANA700
Heavy Duty Air Horns for Marine and Heavy Industrial ApplicationsWeatherproof Alarm Horns Sounder / Audible AlarmMax.130dB
| Product Feature: | Air horn (Max.130dB at 1m) |
| Voltage: | DC:24VAC:110V,220V |
| Dimension: | Horn Diameter : Ø101Height : 222Depth : 144 |
| Materials: | Horn-PCSolenoid box-ABS |
| Protection rating: | IP56 |
Product Feature
- High volume horn uses compressed air to power the high pitched sound made with the diaphragm
- Uses a special material which consumes a small quantity of compressed air and has long durability
- Suitable for applications like a large and noisy engine rooms, a phone alarm in a pump room, or as an emergency alarm
- Housing standard color : R-Red, BK-Black, 7.5BG-MUNSELL No.7.5BG 7/2
- Materials : Horn-PC, Solenoid valve box-ABS
- Air pressure : 5-7kg/㎠
- Ambient operation temperature : -20°C to +60°C
Product Specifications
| Model number | Frequency | Volume | Certificates | Weight | Voltage | Current | Color |
|---|---|---|---|---|---|---|---|
| SANA700 | 700-800Hz | Max.130dB | - | 1.07kg | DC24V | 450mA |  R-Red BK-Black 7.5BG |
| AC110 | 200mA | ||||||
| AC220 | 100mA |
Download
PDF Catalogue
Operating Manual
External View Drawing(PDF)
External View Drawing (Auto-CAD)
