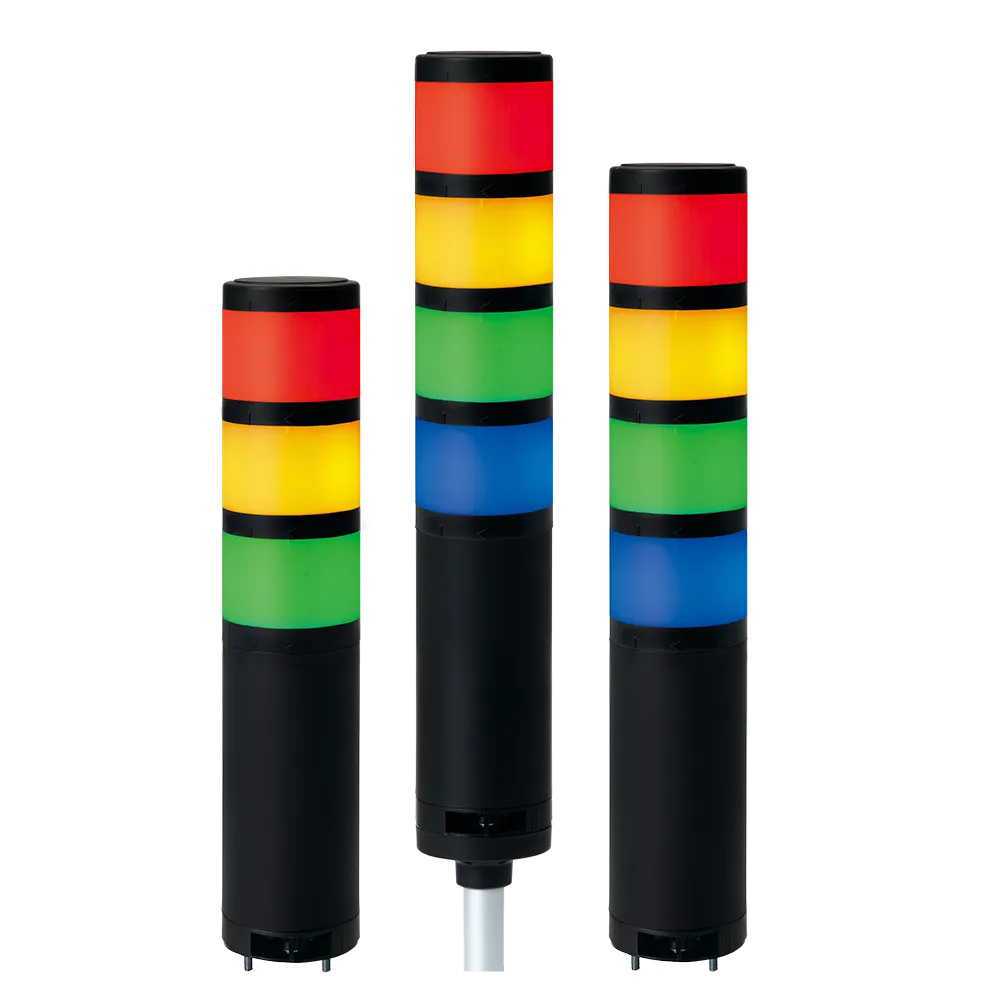

QTR50(M)L-USB
Ø50mm USB LED Tower Lights Max.85dB
| Product Feature: | Buzzer volume controllable type (Max. 85dB at 1m) |
| Voltage: | USB DC 5V |
| Dimension: | Diameter : Ø50Height : 412-572 |
| Materials: | Lens-ASHousing-ABS |
| Protection rating: | IP54 |
Product Feature
Features
- Ideal solution for building smart factories with state of the art technology
- LED tower light that is fully controlled by a PC application via USB port connection
- Possible to use USB cable connection without an additional power supply
Main characteristics
- Provides MS Runtime libraries for developers to utilize in various PC applications
- Controlled by PC application
- LED Module Standard Operation: 2 layers will operate at the same time.
- 5 built-in Buzzer tones available
- USB communication cable is comprised of VCC, D-, D +, GND, and shield
- Compliant with RoHS directive
Operational environment
- OS Support(32bit / 64bit): Windows XP, Win 7, Win 10
- Library Support: VC++, VB, Delphi(32bit only), C#(64bit only)
- Support host that is USB 1.1 or higher
- Power supply : DC 5V/500mA rated PC USB * 2 ports are required
- Multiple connections on 1 PC is optionally available (up-to 4 units).
- ※ The Y cable included with the product has a communication and power connection.
※ Multiple LED modules operate within the current range of USB port current coverage.
Product Specifications
| Model number | Layer | Certificate | Color | |
|---|---|---|---|---|
| QTR50(M)L-USB-BZ QTRA50(M)L-USB-BZ | 5 Buzzer sounds | 1layer 2layer 3layer 4layer 5layer | - | 1layer :  R-Red2layer: R-Red  G-Green3layer: R-Red  A-Amber G-Green4layer: R-Red A-Amber G-Green  B-Blue5layer: R-Red A-Amber G-Green B-Blue  W-White |
Download
PDF Catalogue
External View Drawing(PDF)
External View Drawing (Auto-CAD)
Test Program
Manual & Library
