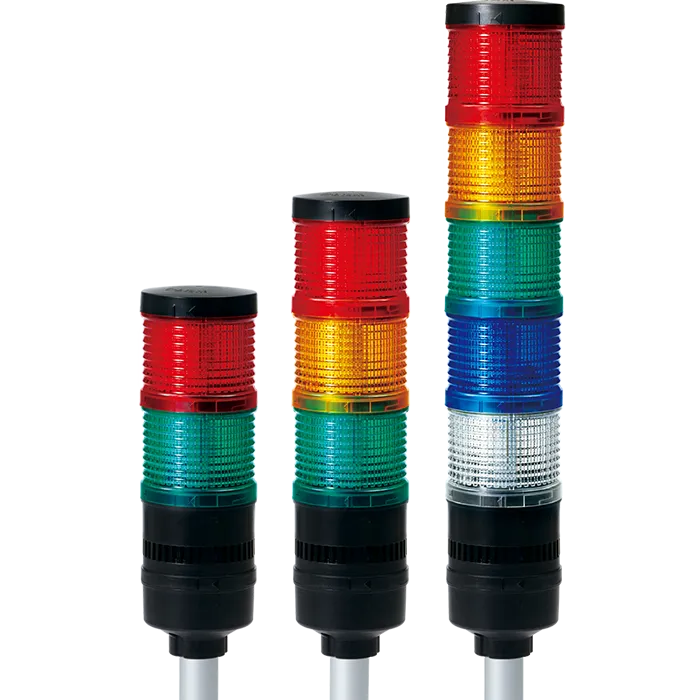

QT50ML-BZ
Ø50mm Built-in Buzzer ModularLED Tower LightsMax.90dB
| Product Feature: | Buzzer volume controllable type (Max. 90dB at 1m) |
| Voltage: | DC:12V,24VAC:110V,220V |
| Dimension: | Diameter : Ø50mmHeight :83-247 |
| Materials: | Lens-PCHousing-PC |
| Protection rating: | IP54 |
Product Feature
- QT series tower light is a multifunctional product that allows for significant customization to your specific needs using our special modular components such as the lens, buzzer, ethernet cord, USB cord and mounting brackets. Additional tools are not required for assembly
- All modular components can be arranged freely to the user desired position (upper/ lower) except for the dial tone lever
- Product that consist of LED module, base module, Buzzer module
- Buzzer modules position can be chosen freely
- Can select from a variety of LED light functions
- Material : Lens-PC, Housing-PC
- Ambient operating temperature : -30°C to +50°C
- Protection rating : IP54
Product Specifications
| Model number | Layer | Voltage | Certificates | Weight | Color |
|---|---|---|---|---|---|
| QT50ML-BZ QT50MLF-BZ (Max. 90dB) | 1 | DC12V DC24V AC110V AC220V |  | 0.17kg 0.17kg 0.18kg 0.18kg |  R-Red |
| 2 | DC12V DC24V AC110V AC220V | 0.21kg 0.21kg 0.22kg 0.22kg | R-Red G-Green | ||
| 3 | DC12V DC24V AC110V AC220V | 0.25kg 0.25kg 0.26kg 0.26kg | R-Red A-Amber G-Green | ||
| 4 | DC12V DC24V AC110V AC220V | 0.30kg 0.30kg 0.31kg 0.31kg | R-Red A-Amber G-Green  B-Blue |
※ CE compliant: DC12V, DC24V, AC220V
QT50ML : Steady Module QT50MLF : Steady/Flashing Module
+
Base Module(BS)
+
Buzzer(BZ)
Light source/buzzer current(based on 1 layer)
Voltage | DC12V | DC24V | AC110V | AC220V |
|---|---|---|---|---|
Light source current(1 layer) | 100mA | 55mA | 25mA | 25mA |
| Buzzer current | 30mA | 55mA | 110mA | 130mA |
Sound Tone Combination of Standard Product
Buzzer Tone
Pi-- Pi-- slow
